Mounting

Every current-generation IgorBox controller shares the same chassis and base plate, so one mounting story covers all of them: the Output 8 MKII, Input 16, LED Controller, and IgorBox DMX.

The chassis has holes for wall-mount directly with screws through the side flanges, and we sell a DIN-rail bracket kit that can use the side flange holes to position the controller in 5 different positions.

Footprint​

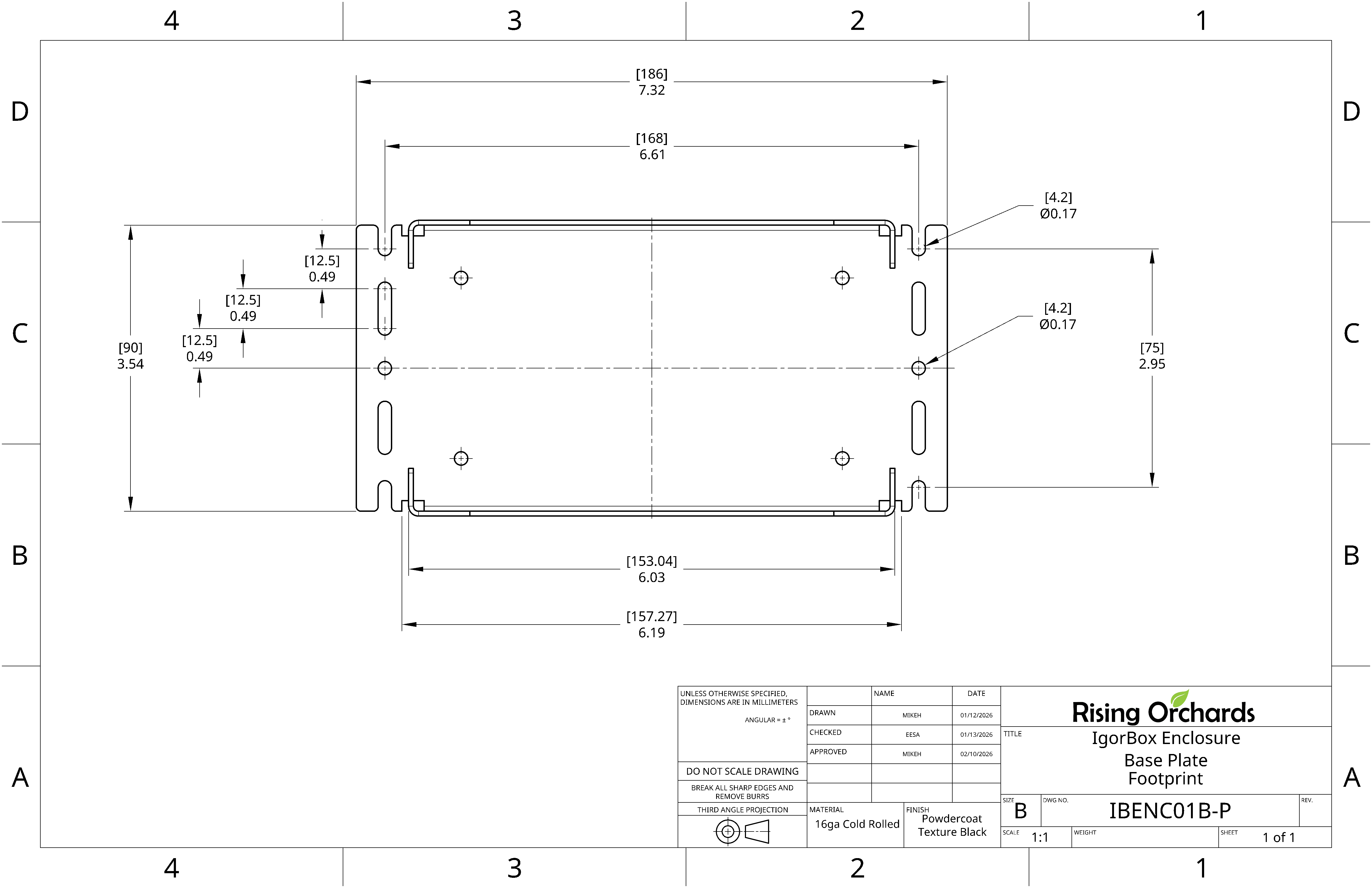

The base plate, viewed from the top down. Dimensions are in millimeters [brackets] and inches:

Top-down mounting footprint of the IgorBox base plate, shared by all current-generation controllers

Upgrading from earlier hardware​

  • From an Output 8 MKI: the MKII hole pattern matches the MKI, so your existing rack-mount, wall-mount, and DIN-rail hardware is reusable.
  • From an Input 8: the Input 16 uses the same chassis dimensions, so existing brackets and racking are reusable.
